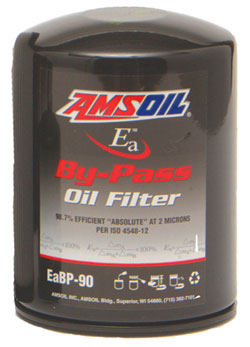

Ea By-Pass Oil Filters (EaBP)

 Ea By-Pass Oil Filters (EaBP)
Product Code: EABP • Brand: AMSOIL

AMSOIL Ea By-Pass Oil Filters (EaBP) provide the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine's full-flow oil filter, AMSOIL Ea By-Pass Filters operate by filtering oil on a "partial-flow" basis.

See Pricing or Place an Order
Data Sheet

Product Details

Product Description

AMSOIL Ea By-Pass Oil Filters (EaBP) provide the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine's full-flow oil filter, AMSOIL Ea By-Pass Filters operate by filtering oil on a "partial-flow" basis. They draw approximately 10 percent of the oil pump's capacity at any one time and trap the extremely small, wear-causing contaminants that full-flow filters can't remove. The AMSOIL Ea By-Pass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.

Higher Efficiency & Longer Lasting

AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.

EaBP90
EaBP100
EaBP110
EaBP120
Mileage
60,000
70,000
80,000
120,000
Hours
600
800
1,200
1,800
Time
2 years
2 years
2 years
1 year

Superior Construction

The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior; and their zinc-dichromate base plates increase rust protection. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.

Click on diagram for larger viewLonger Lasting
When used in conjunction with AMSOIL motor oil and an AMSOILEaO or Donaldson Endurance™ filter, the EaBP Filter should bechanged every other full-flow filter change up to 60,000 miles.When used with other brands of motor oil or full-flow filters, the EaBPFilter should be changed every other full-flow filter change. AMSOILrecommends using oil analysis when extending oil drain intervals.

Increased Oil Capacity
The increased fluid system capacity and filtrationlife provides improved oil cooling and ensures thatequipment constantly runs on clean oil. Engine efficiencyis increased, providing extended engine life.

Click for larger graph imageSoot Removal
AMSOIL has designed a new high-efficiencyby-pass filter element that is also a soot removaldevice. AMSOIL Ea By-Pass Filters use a synthetic/cellulose sandwiched media. The innerlayer of the element is composed of a highly efficientcellulose media covered with a full syntheticmedia outer layer. According to ISO 23556 testing, these filters remove 39 percentof soot contaminants less than one micron.Soot removal efficiency increases approximately10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.

By-Pass Filtration Benefits

• Dramatically Extended Drain Intervals
• Improved Oil Cooling
• Increased Filtration Capacity and Life
• Increased Fluid System Capacity
• Efficient Small Particle and Soot Removal
• Significantly Extended Engine Life
• Equipment Constantly Runs on Clean Oil
• Increased Engine Efficiency
• Remove Particles Less Than One Micron

Type of UnitStock NumberCrankcase CapacitybApplications
SINGLE SPIN-ON ELEMENT

(Used with BMK21 or any DUAL REMOTE SYSTEM)

EaBP90up to 9 qt.Pleasure Vehicles, Light Trucks and Smaller Commercial Applications
EaBP100up to 15 qt.
EaBP110up to 21 qt.

DUAL SPIN-ON ELEMENT

(Used with BMK22 DUAL-GUARD)

EaBP9015 to 18 qt.Large Trucks, Construction, Farm and Industrial Equipment
EaBP10015 to 30 qt.
EaBP11015 to 42 qt.
SPIN-ON ELEMENT (Used with BMK30 Heavy-Duty Bypass System)EaBP12024 to 60 qt.Large Trucks, Construction, Farm and Industrial Equipment

a. Make sure to check oil level with engine oil dipstick to ensure proper level. This additional volume is an estimate and should be properly evaluated using the dipstick.

b. Filters can be used on sumps of larger capacity but may require more frequent filter replacement.

EABP90 filter shown in dual remote bypass system

BMK23 with EABP90
Close Product Detail
Technical Data
Vehicles with sump capacities up to and including 15 qts
Mount Filter
BMK21 (Filters sold separately)Any size AMSOIL Ea By-Pass Filter Element
BMK23 (Filters and spin-on adapter sold separately)Any size AMSOIL Ea By-Pass Filter Element, and 3/4"-16 thread EaO filter as room permits
BMK25 Cummins Diesels
(Filters and spin-on adapter included)
EaO26 and EaBP100 Ea By-Pass Filter Element
BMK26 International Diesels
(Filters and spin-on adapter included)
EaO26 and EaBP100 Ea By-Pass Filter Element
BMK27 Duramax Diesels (in GM Pick-ups)
(Filters and spin-on adapter included)
EaO26 and EaBP100 Ea By-Pass Filter Element
Vehicles with sump capacities greater than 15 qts
Mount Filter
BMK22 Dual Gard (Hose and filters sold separately) Any size AMSOIL Ea By-Pass
(mount requires 2 filters)
BMK30 Dual Gard (Hose and filters sold separately) EaBP120 Ea By-Pass Filter Element
Close Technical Data

 Ea By-Pass Oil Filters (EaBP)
